Name:

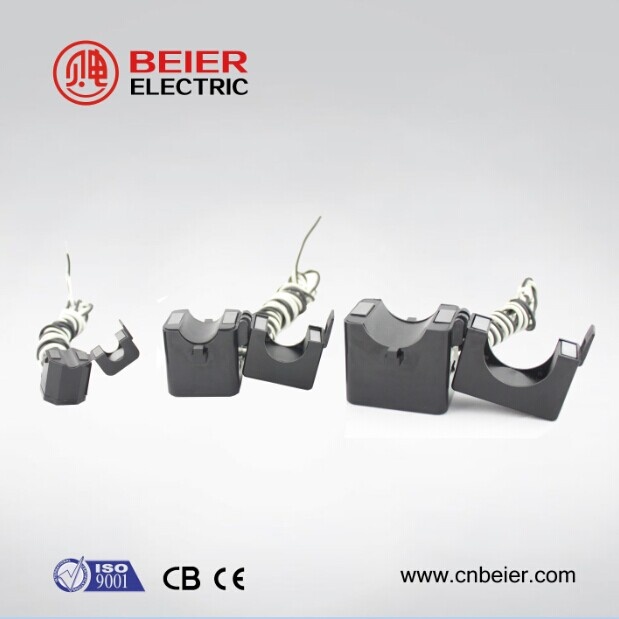

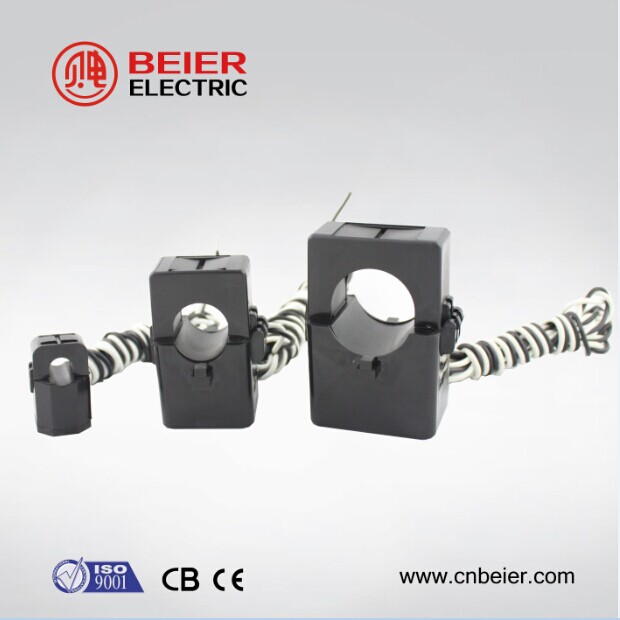

FP series split core current transformer
1. Primary current: 5-600Aac;
2. Secondary current: 0-500mA, 1A, 5A, 0.333V;
3. Accuracy class: 0.5, 1.0, 3.0;
4. Cases are made of Nylon Resin94-V0;
5. Lead length 24cm twisted pair 0.34mm2;



Technical Date:

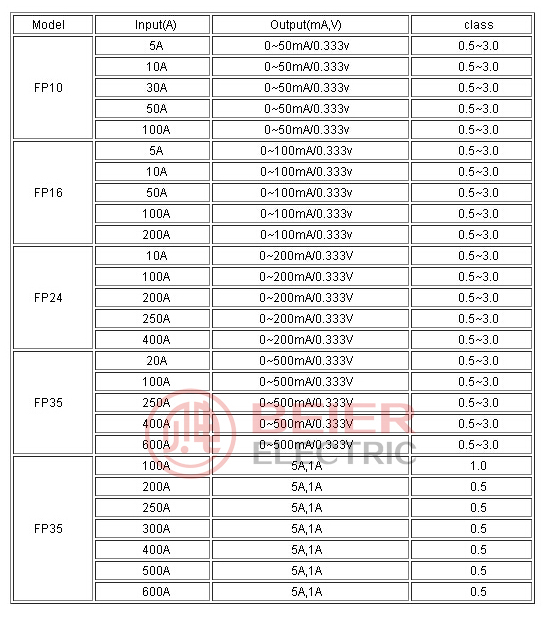

Model:

FP10, 16, 24, 35 four sizes(the 10, 16, 24, 35 are the inner hole diameters dimensions in Unit: mm)

pls refer to our Data page for more details!
