First look:
1. All the cases are made of polycarbonated materials, not nylon material case,
so the temperature endurence is much higher;
2. All the cores are made of imported highest quality silicon iron sheet,
so the core's magnetic performance is much higher;
3. All the parameters are double cross-checked, so the testing results is much ensured!
Specifications:
Standard adopted: IEC44-1, BS7626;
Primary current: 100A~5000A;
Secondary current: 1A or 5A;

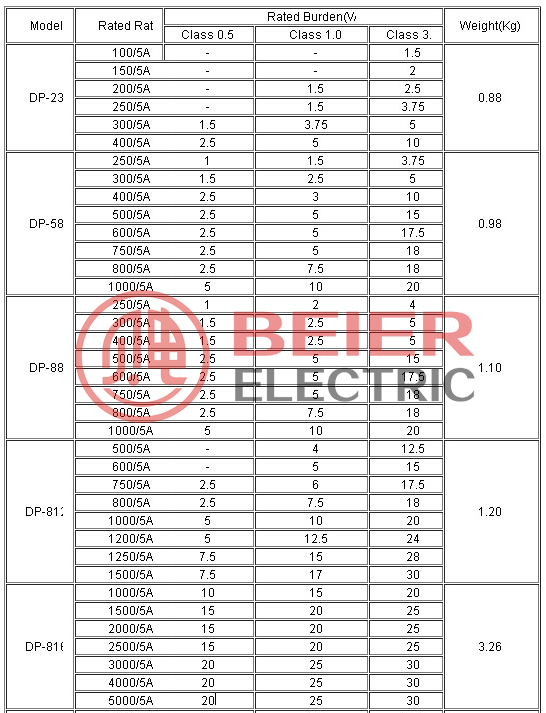

Rated burden: 1.5VA~30VA;
Accuracy class: 0.5, 1.0 or 3.0 for small current;
Maxi-voltage: 0.72kV/3KV;
Frenquency: 50/60Hz;
Short time thermal current: Ith=100xIn;
Security coefficient: FS<5

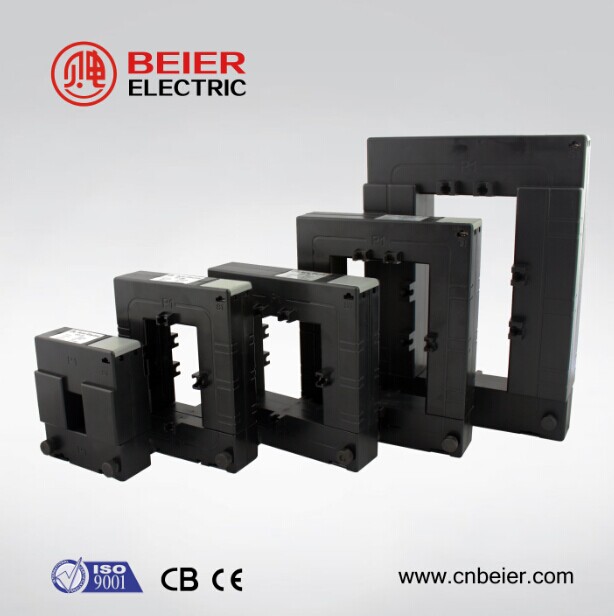

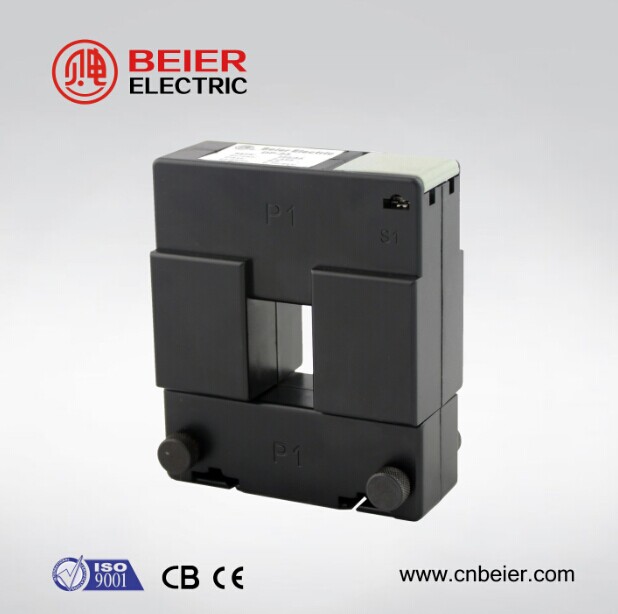

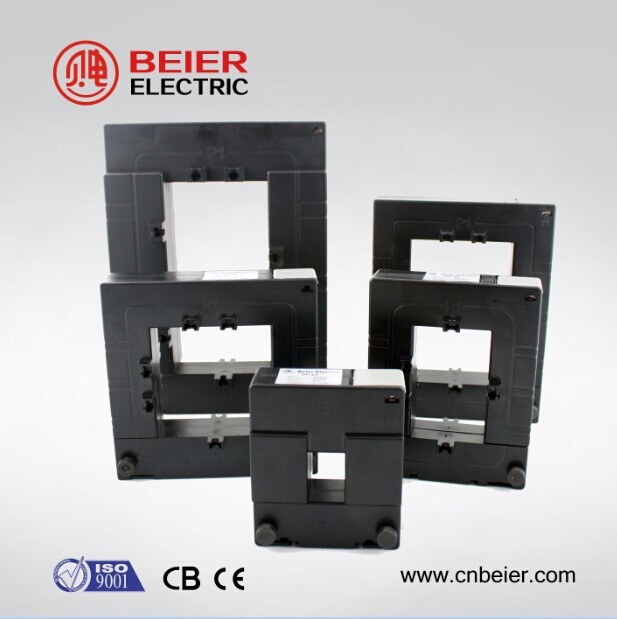

DP23, DP58, DP88, DP812, DP816
