Name:

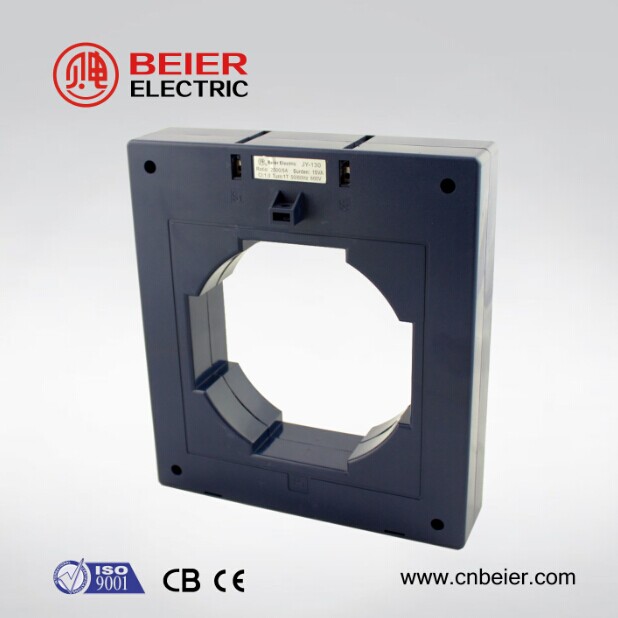

JY series current transformer

1. Standard: IEC44-1, BS3938, DIN42600, GB1208-2006;

2. Primary current: 1~5000A;

3. Secondary current: 1A or 5A;

4. Accuracy class: 0.5, 1.0;

5. Cases are made of ABS, meet UL-94V0;

6. Short -time thermal current: Ith=60x1h;

7. Security factor: FS less than 5;

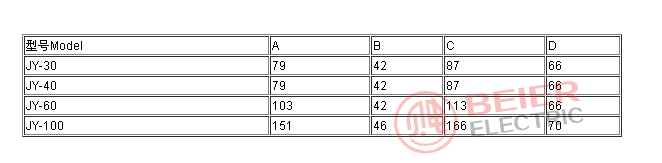

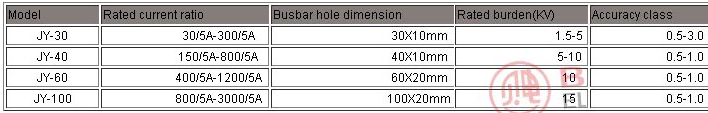

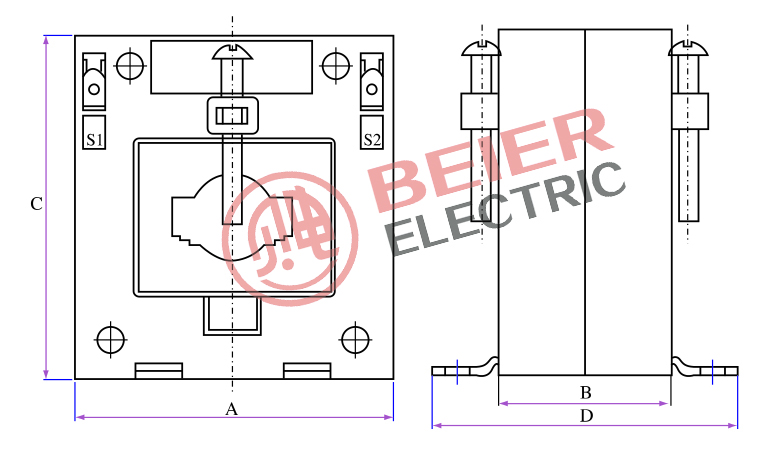

Technical Date:

 JY-30, JY-40, JY-60, JY-100, JY-125
