Products > DP series split core > > DP-58 series current transformer

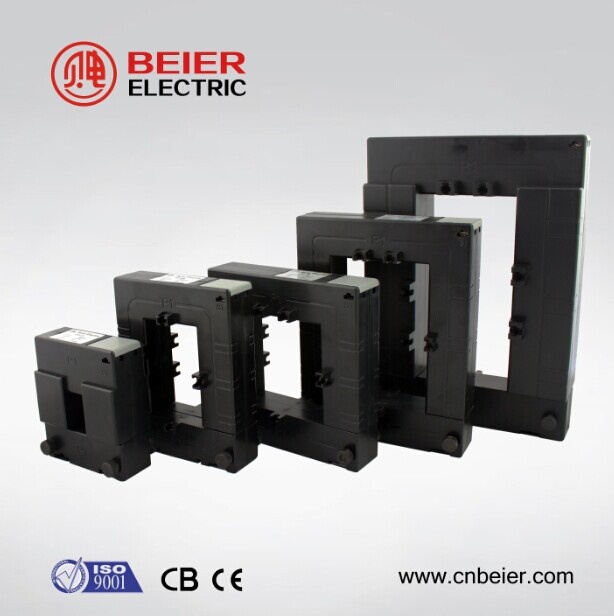

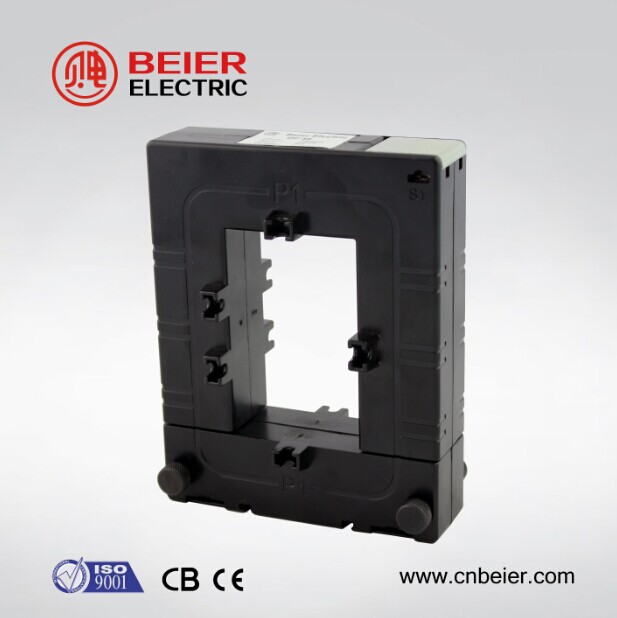

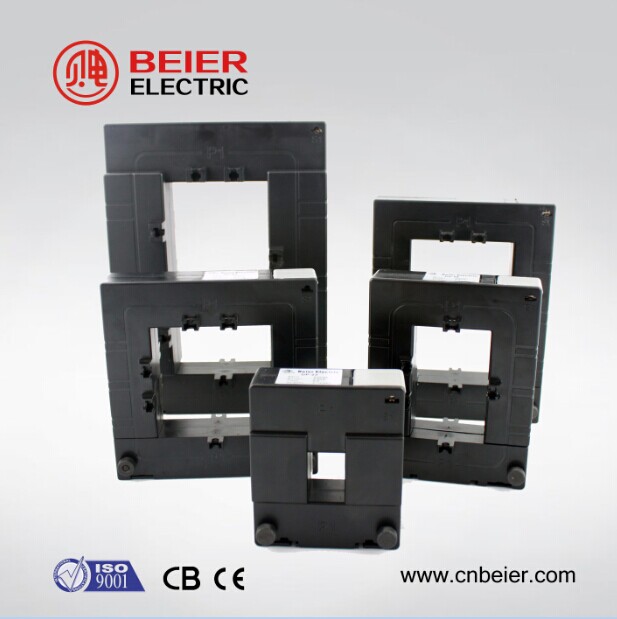

Product name : DP-58 series current transformer
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
First look:
1. All the cases are made of polycarbonated materials, not nylon material case,
    so the temperature endurence is much higher;
2. All the cores are made of imported highest quality silicon iron sheet,
    so the core's magnetic performance is much higher;
3. All the parameters are double cross-checked, so the testing results is much ensured!

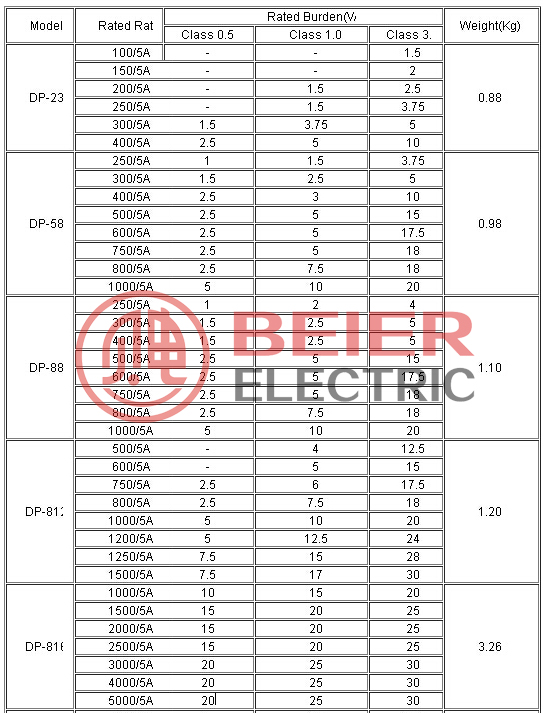

Specifications:
Standard adopted: IEC44-1, BS7626;
Primary current: 100A~5000A;
Secondary current: 1A or 5A;
Rated burden: 1.5VA~30VA;
Accuracy class: 0.5, 1.0 or 3.0 for small current;
Maxi-voltage: 0.72kV/3KV;
Frenquency: 50/60Hz;
Short time thermal current: Ith=100xIn;
Security coefficient: FS<5

Technical
Date:




Models:
DP23, DP58, DP88, DP812, DP816
